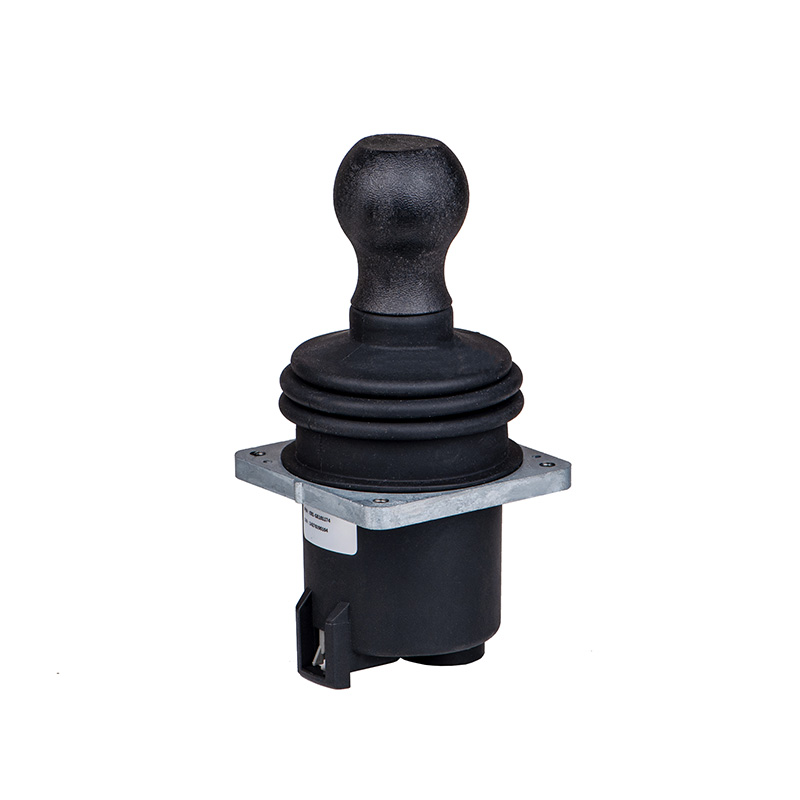

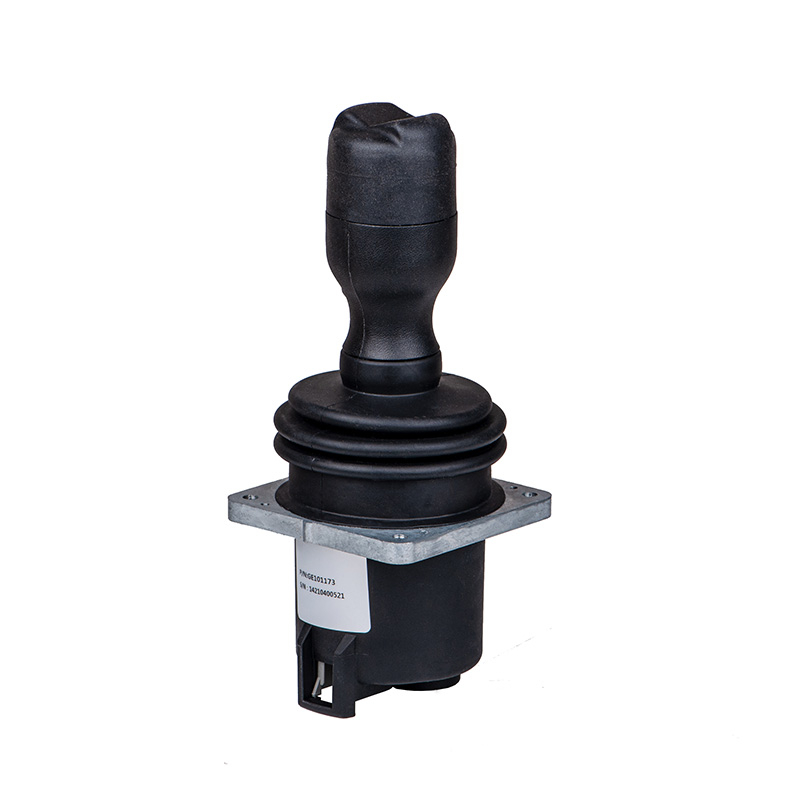

The C81 series multi-axis operating handle features single-axis or multi-axis operation and spring return. It adopts non-contact Hall technology, ensuring high reliability and long service life. It is a robust handle that can adapt to harsh environments and can be configured with different upper ends. Its shaking Angle is ±18°, the operating force is 8-16N, the service life is 2 million times, and the weight is approximately 600g. In terms of electrical parameters, the power supply voltage is available in 5.0±0.5Vdc or 9 to 32Vdc. It is applicable to driving proportional valves to achieve electro-hydraulic control, as well as various types of construction machinery. Users can select the model based on operation mode, output signal, upper end of the handle and output method. The protection level reaches IP65, and the working temperature ranges from -30℃ to +70℃.
The C81 series multi-axis operating handle features single-axis or multi-axis operation and spring return. It adopts non-contact Hall technology, ensuring high reliability and long service life. It is a robust handle that can adapt to harsh environments and can be configured with different upper ends. Its shaking Angle is ±18°, the operating force is 8-16N, the service life is 2 million times, and the weight is approximately 600g. In terms of electrical parameters, the power supply voltage is available in 5.0±0.5Vdc or 9 to 32Vdc. It is applicable to driving proportional valves to achieve electro-hydraulic control, as well as various types of construction machinery. Users can select the model based on operation mode, output signal, upper end of the handle and output method. The protection level reaches IP65, and the working temperature ranges from -30℃ to +70℃.
