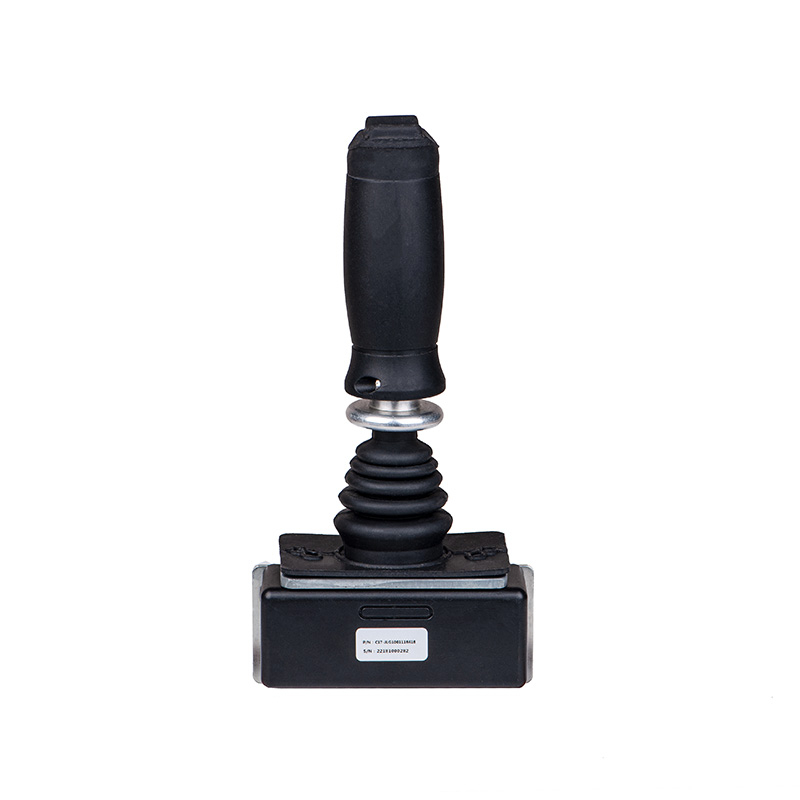

The C17 series electric joystick is a highly reliable Hall type single-axis operating handle, meticulously engineered to meet the rigorous demands of modern industrial machinery and aerial work platforms. Designed for precise forward and backward operation, this joystick incorporates a highly responsive spring return design that automatically brings the lever back to its neutral state when released. By leveraging advanced Hall effect sensor technology, the C17 series provides a consistent and stable output without the physical wear and tear associated with traditional contact-based potentiometers. This non-contact measurement principle ensures long-term reliability, making it an essential component for procurement professionals seeking dependable control solutions for heavy-duty equipment.
Safety and ergonomic control are at the forefront of this product's design. The joystick is equipped with an HBR handle at the upper end, which features a highly practical mid-position lock function. This safety mechanism prevents accidental actuation, ensuring that the machinery only moves when the operator intentionally engages the control. Utilizing a standard connector for wiring, the C17 series facilitates straightforward integration into existing control panels. For optimal mounting stability and secure integration, it is recommended that the thickness of the installation panel be ≤4mm.
When selecting control components for aerial work platforms, durability and precision are paramount. The C17 series electric joystick offers significant advantages designed to lower maintenance costs and enhance overall operational efficiency:
Exceptional Service Life: Engineered for longevity, the joystick boasts a remarkable service life of over 5 million times. This extended lifecycle drastically reduces the frequency of replacements and minimizes equipment downtime, providing excellent long-term value for fleet managers and equipment manufacturers.
High-Precision Output: With a linear error and median voltage error strictly controlled within ±3%, the joystick guarantees highly accurate signal transmission. This precision is critical for the smooth and safe positioning of aerial platforms, where even minor deviations can impact operational stability.
Robust Environmental Adaptability: Designed to perform reliably in harsh working conditions, the upper portion of the joystick (above the installation panel) achieves an IP65 protection grade, effectively shielding internal components from dust and water ingress. Furthermore, its broad temperature tolerance ensures consistent performance in varying climates.
To assist technical teams and purchasing managers in their selection process, the comprehensive performance parameters of the C17 series Hall type single-axis operating handle are categorized below:
Power Supply Voltage: Available in two stable configurations: 5Vdc and 7Vdc.
Corresponding Output Voltage: 0-2.5-5V (for 5Vdc supply) and 0-3.5-7V (for 7Vdc supply).
Linear Error: ±3% maximum deviation.
Median Voltage Error: Strictly maintained at ±3%.
Operating Angle: Configurable to either ±25° or +30°, accommodating different control and spatial requirements.
Operating Force: Ranging from 5 to 30N, providing comfortable tactile feedback for the operator during extended use.
Limit Force: Up to 300N, ensuring structural integrity against forceful impacts or heavy-handed operation.
Service Life: Tested to endure over 5 million operational cycles.
Weight: Lightweight yet robust construction, weighing approximately 460g.
Handle Configuration: HBR handle equipped with a dedicated mid-position lock function.
Mechanical Action: Single-axis forward and backward operation with a reliable spring return mechanism.
Protection Grade: IP65 (applicable to the section above the installation panel), offering strong resistance against dust and low-pressure water jets.
Operating Temperature Range: -30℃ to +70℃, suitable for outdoor and demanding industrial environments.
Storage Temperature Range: -40℃ to +85℃, ensuring safe storage in unconditioned warehouses or during transport.
When integrating the electric joystick into the control console of an aerial work platform, proper mechanical installation is critical for ensuring long-term stability and operator safety. The equipment is designed for straightforward panel mounting. For optimal securement and to prevent mechanical play during intense operations, it is strictly required that the thickness of the installation panel be ≤4mm. Exceeding this thickness limit may compromise the structural integrity of the mounting hardware and affect the overall sealing performance of the control unit. Operators and system integrators should verify the console dimensions prior to installation to ensure seamless compatibility.

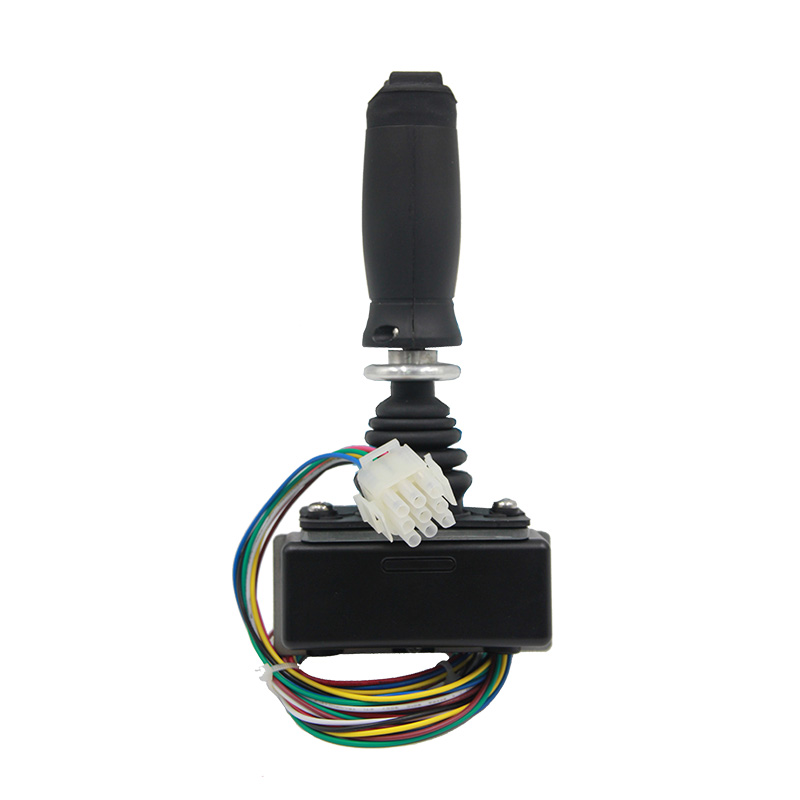

Electrical integration is streamlined to support efficient assembly and maintenance. This electric joystick uses a connector for wiring, eliminating the need for complex internal soldering during field installation or replacement. System integrators should ensure that the mating connector is properly aligned and securely fastened to prevent intermittent contact caused by operational vibrations typical in heavy machinery environments. Proper cable routing should be observed, allowing adequate slack to prevent tension on the connector housing while avoiding interference with other moving components within the control panel.
Safety is paramount in high-elevation tasks. The joystick is equipped with a neutral lock function designed to prevent accidental actuation. Before initiating any directional movement, the operator must consciously disengage the neutral lock. This safety feature ensures that the aerial work platform remains stationary if the joystick is inadvertently bumped or leaned upon. During regular operation, the transition from the locked neutral position to active control should be smooth. Operators are advised to familiarize themselves with the tactile feedback of the lock release to ensure precise control over the platform's movements.
Aerial work platforms are frequently deployed in demanding outdoor environments. This electric joystick is engineered to withstand challenging conditions, featuring an IP65 protection rating. This ensures robust defense against dust ingress and low-pressure water jets, making it suitable for construction sites, facility maintenance, and outdoor industrial applications. Additionally, the component is designed to operate reliably across a wide temperature range. To maximize the lifespan of the joystick, avoid prolonged exposure to environments exceeding the specified thermal limits, and ensure that the protective rubber gaiters remain intact and free from punctures.
The primary application for this electric joystick is the precise control of aerial work platforms, including scissor lifts, boom lifts, and telehandlers. In these applications, the joystick serves as the primary interface between the operator and the machine's drive systems. The ergonomic design and responsive electrical output allow for proportional control, enabling operators to execute micro-adjustments when positioning the platform near structures or obstacles.
To maintain optimal performance and ensure operator safety, a routine inspection schedule is highly recommended. Maintenance personnel should periodically check the mounting panel to confirm that the installation remains secure, particularly verifying that the panel thickness requirement (≤4mm) has not led to deformation over time. The wiring connector should be inspected for secure attachment and the absence of corrosion. Furthermore, the IP65 sealing components, such as the rubber boot, must be examined for signs of wear, cracking, or degradation caused by UV exposure or chemical contact. Prompt replacement of damaged seals is crucial to maintaining the environmental protection rating and preventing internal electrical faults.
