electric joystick with spring return for remote control

Product Description

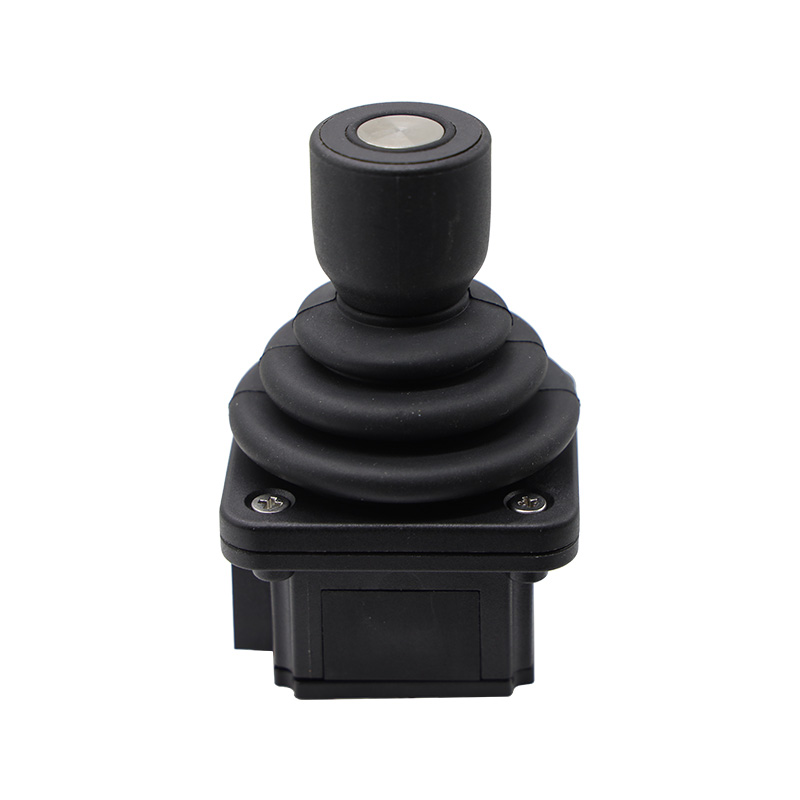

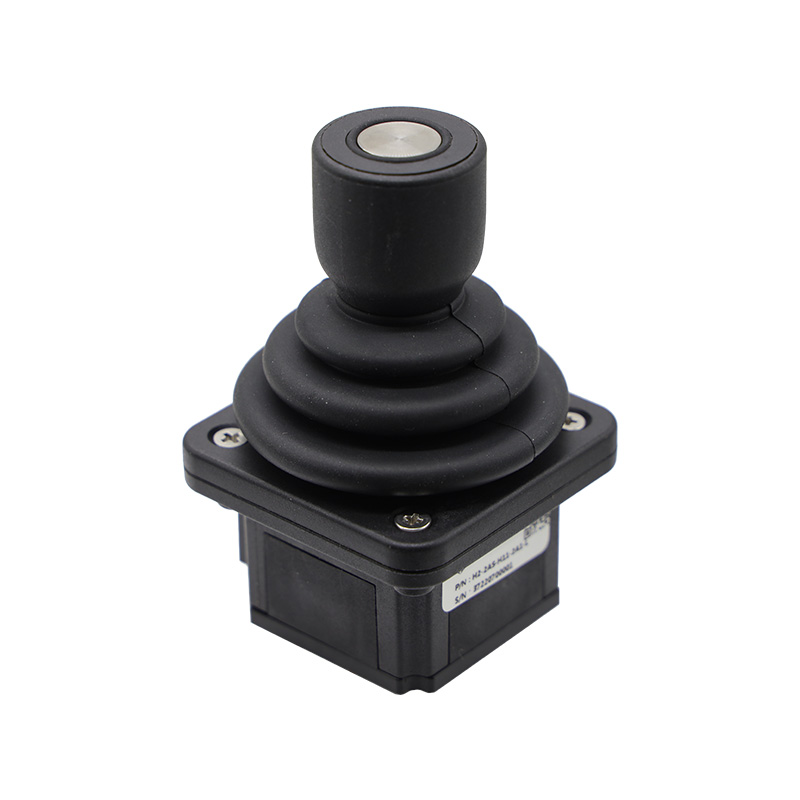

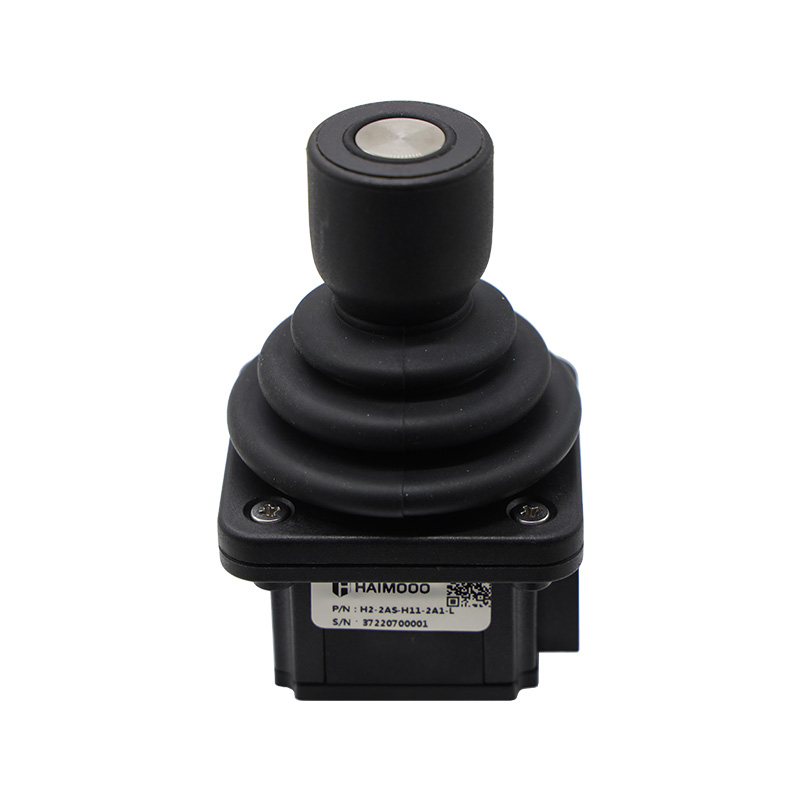

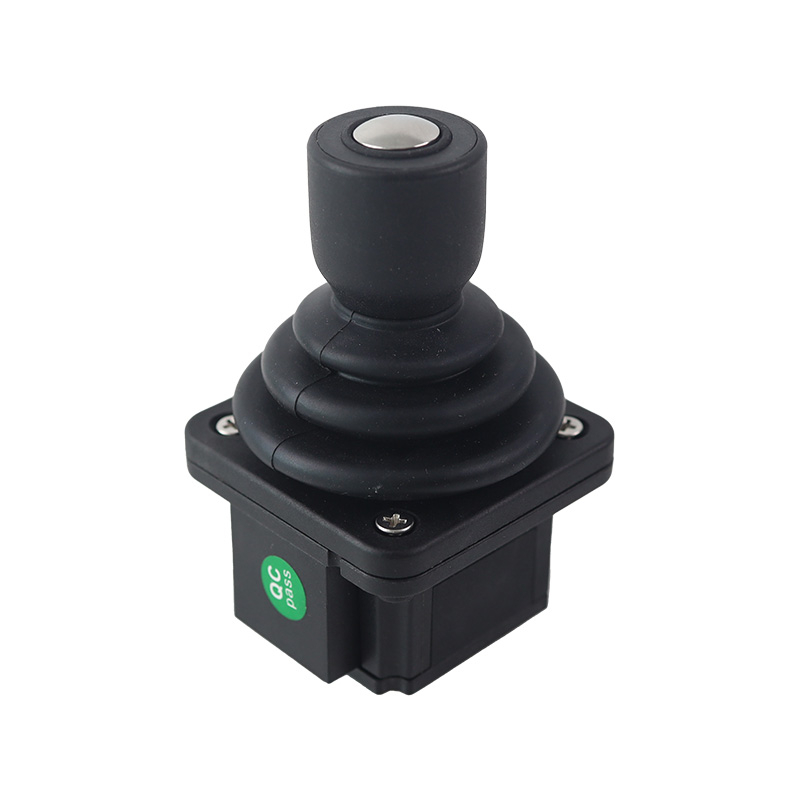

The H2 series Hall type multi-axis operating handle is engineered specifically for demanding industrial control environments. Designed as a highly reliable electric joystick with spring return for remote control applications, this unit offers precise multi-axis operation in a compact form factor. Its distinctive rotating shaft structure and exceptionally low height above the panel make it an ideal choice for installations where operating space is severely limited. By utilizing advanced Hall effect technology, the joystick delivers consistent, non-contact proportional control, significantly reducing mechanical wear and ensuring long-term stability for critical industrial operations.

For procurement professionals and system integrators, this joystick provides a versatile solution that balances ergonomic design with industrial-grade durability, ensuring operators maintain accurate control while minimizing fatigue during extended use.

Key Features & Advantages

• Compact & Low-Profile Design: The low height above the panel minimizes the spatial footprint, allowing for flexible integration into constrained control panels and portable remote units without sacrificing operational ergonomics.

• Independent Multi-Axis Control: The X and Y axes output signals independently, ensuring that movements in one direction do not interfere with the other. This guarantees precise, multi-directional maneuvering for complex machinery.

• Reliable Spring Return Mechanism: Equipped with a robust spring return mechanism, the handle automatically and smoothly returns to the center position when released, enhancing operational safety and user control.

• Optional Redundant Output: For systems requiring enhanced safety protocols, redundant output configurations can be selected for each axis, providing a reliable backup signal to prevent critical control failures.

• Durable & Protective Construction: The buttons are designed to be fully waterproof and dustproof, safeguarding the internal electronics against harsh industrial contaminants and extending the overall service life.

Technical Specifications

The H2 series is built to deliver consistent performance across a variety of demanding conditions. Users can select the specific model based on operation mode, output signal, upper end of the handle, and output method to match their exact project requirements. Key parameters include:

• Model Series: H2 series Hall type multi-axis

• Operating Voltage: A wide voltage input range of 9 to 32Vdc can be selected, ensuring compatibility with standard industrial power systems.

• Operating Angle: The handle can be turned at an angle of approximately ±20°.

• Operating Force: 5-10N, providing comfortable tactile feedback for the operator.

• Weight: Weighing about 150g, maintaining a lightweight profile for portable equipment.

• Mechanical Lifespan: Tested for a lifespan of 2 million times, reducing maintenance frequency and replacement costs.

• Protection Level: Reaches IP67 (electronic part), offering strong resistance against dust and water ingress.

• Working Temperature: Ranges from -20℃ to +65℃, ensuring reliable operation in both freezing and high-heat environments.

Applications

This electric joystick is highly adaptable and designed to meet the rigorous demands of various industrial sectors. It is primarily applicable to industrial remote controls, heavy-duty control panels, and automation interfaces. Its rugged IP67-rated electronic components and wide temperature tolerance make it highly suitable for outdoor equipment, construction machinery, and factory automation systems where environmental conditions can be unpredictable.

Whether integrated into a portable remote control unit for material handling equipment or a fixed control console in a manufacturing plant, the H2 series provides operators with accurate, reliable control. The combination of a 2 million times lifespan and a wide 9 to 32Vdc voltage range ensures that this joystick serves as a long-term, low-maintenance component for critical industrial infrastructure.
