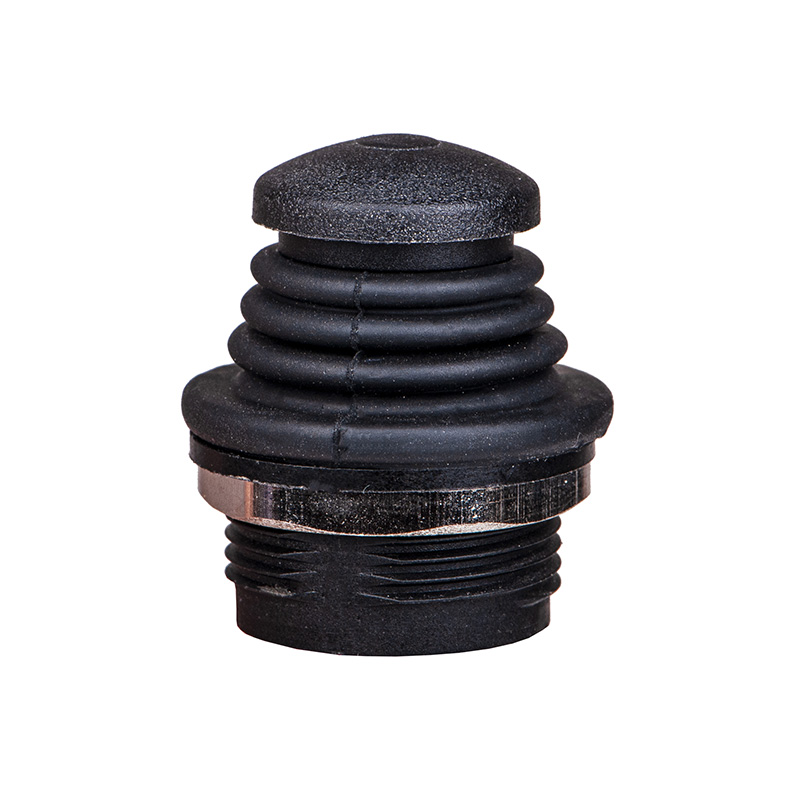

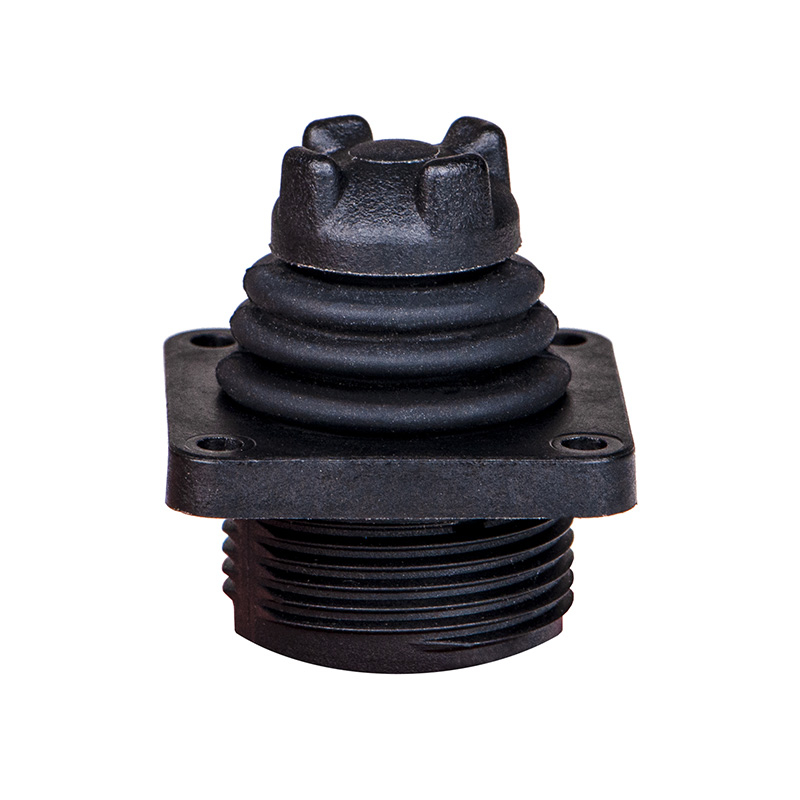

electric joystick with thumb spring return for remote control

Product Description

The C1 series multi-axis operating handle is an advanced electric joystick engineered specifically for demanding remote control applications. Designed to deliver precise directional command and reliable performance, this joystick serves as a critical component for industrial machinery and complex operation panels. By integrating modern sensing technology with a user-centric physical design, it ensures optimal operational efficiency, reduces equipment downtime, and provides a dependable control solution for heavy-duty tasks across various industrial sectors.

Ergonomic Design & Thumb Spring Return Operation

Operator comfort and control precision are paramount in industrial environments. The C1 series electric joystick addresses these needs through carefully considered physical design features:

• Ergonomic Construction: The handle is ergonomically designed to conform to the natural grip of the operator, significantly reducing hand and wrist fatigue during prolonged operational shifts.

• Thumb Spring Return: Featuring a highly responsive thumb spring return operation, the joystick swiftly and accurately snaps back to the center position the moment it is released, ensuring safe and predictable machine behavior.

• Configuration Flexibility: It is readily available for both single-axis or dual-axis operation, allowing procurement teams and system engineers to select the exact control scheme required for their specific equipment layout.

• Tactile Feedback: The joystick provides multiple guiding tactile sensations and supports various installation methods, facilitating straightforward integration into diverse control consoles and portable remote units.

Non-Contact Hall Technology & Redundant Output

At the core of this multi-axis operating handle is advanced non-contact Hall effect technology. Unlike traditional potentiometers that rely on physical contact and are prone to mechanical wear, Hall sensors operate without friction. This friction-free mechanism translates to exceptionally high reliability and a prolonged service life, ultimately minimizing maintenance costs for end-users.

To meet the stringent safety requirements of modern industrial environments, each axis is equipped to provide redundant output. This dual-signal capability ensures that even in the rare event of a primary signal disruption, the backup signal maintains continuous and safe operation. This redundancy is a critical feature for lowering operational risks in heavy machinery and remote control systems.

Core Technical Specifications

To assist engineers and purchasing managers in evaluating the component for their projects, the primary operational and environmental parameters of the C1 series include:

• Shaking Angle: Approximately ±25°, providing a balanced and intuitive range of motion for precise directional control.

• Operating Force: Calibrated at 1.6-3.5N, offering comfortable physical resistance that prevents accidental inputs while remaining easy to manipulate.

• Mechanical Lifespan: Engineered for extreme durability, the lifespan exceeds 5 million operational cycles, guaranteeing long-term stability under frequent and rigorous use.

• Protection Level: Features a dependable IP67 protection level, offering strong resistance against dust ingress and water exposure. This makes the joystick highly suitable for outdoor applications or harsh factory conditions.

• Operating Temperature Range: Capable of operating stably within extreme temperature fluctuations from -40°C to +70°C, ensuring reliable performance in both freezing outdoor environments and high-heat industrial settings.

• Electrical Integration: Designed for convenient electrical connection, streamlining the wiring and assembly process for equipment manufacturers.

Target Applications

The durable construction, precise control capabilities, and adaptable configurations make this electric joystick highly applicable to a variety of demanding fields. It is particularly well-suited for:

• Industrial Remote Controls: Ideal for portable control units used in operating cranes, hoists, and mobile heavy equipment where operators require mobility, safety redundancy, and precise tactile feedback.

• Operation Panels: Highly suitable for fixed control stations, factory automation consoles, construction vehicle cabins, and agricultural machinery dashboards.

By integrating the C1 series multi-axis operating handle into their systems, manufacturers can enhance the safety, precision, and longevity of their control interfaces, ensuring their equipment performs reliably in the most challenging industrial environments.
