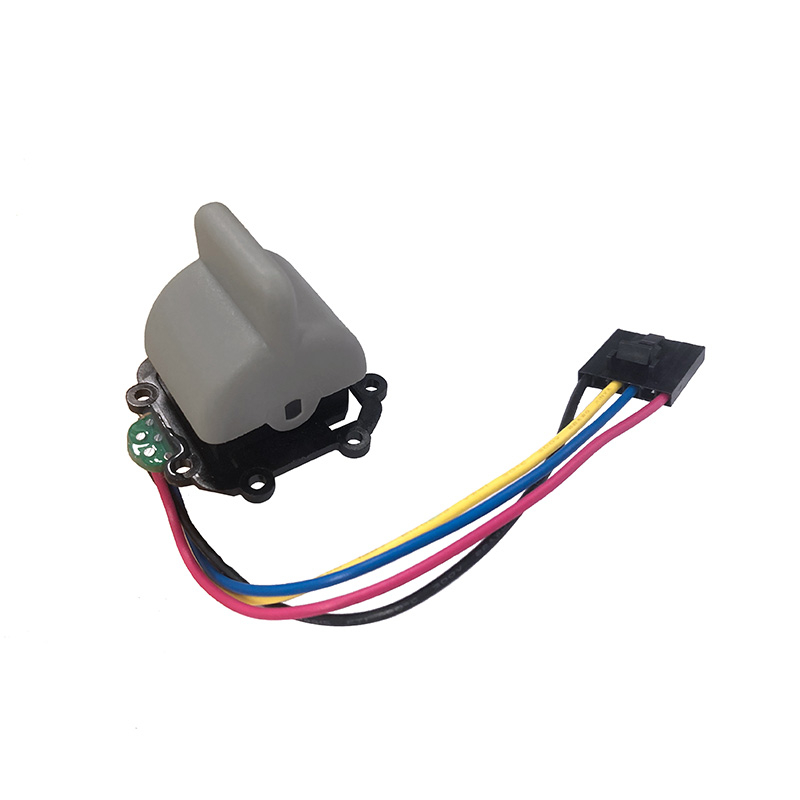

AR3 electric joystick with fingertip operation for remote control

Product Description

The AR3 electric joystick with fingertip operation is meticulously engineered to deliver precise control in environments where space is highly restricted. Designed specifically for compact spaces, this remote control joystick allows for seamless side-by-side installation, making it an ideal choice for complex control panels and modern armrest boxes. By focusing on ergonomic fingertip control, the AR3 series ensures that operators can maintain high efficiency and accuracy without experiencing fatigue during prolonged use. Whether integrating into new construction machinery or upgrading existing remote control systems, this compact joystick provides a reliable, space-saving solution that meets the rigorous demands of industrial applications.

Core Features and Operational Benefits

This fingertip control handle integrates several advanced features designed to enhance operational safety, equipment responsiveness, and long-term reliability for equipment manufacturers and system integrators.

• Single-Axis Operation with Spring Return: The joystick utilizes a highly responsive single-axis movement mechanism paired with a reliable spring return design. This ensures the handle automatically and accurately returns to the neutral position when released, providing simple, convenient, and safe operation for critical machinery tasks.

• Optional Redundant Signals: To maximize system safety and reliability, the AR3 offers optional redundant signal outputs. This dual-signal capability is essential for heavy-duty construction equipment, minimizing the risk of signal failure and ensuring continuous, safe operation in demanding environments.

• Wide Voltage Output Compatibility: The device supports flexible power configurations with wide voltage output options. It can be powered by either a standard 5.0±0.5Vdc supply or a broader 9-32Vdc range, allowing for easy integration into a wide variety of electrical systems without the need for additional voltage converters.

Technical Specifications

Built for longevity and stability, the AR3 electric joystick offers robust technical parameters that guarantee consistent performance. With an impressive service life and high protection grades, it is built to withstand harsh industrial conditions.

• Power Supply Voltage: 5.0±0.5Vdc or 9-32Vdc

• Shaking Angle: ±30°

• Operating Force: 4N

• Weight: Approximately 45g

• Service Life: About 2,000,000 times

• Protection Grade: IP65 (electronic part)

• Operating Temperature: -35℃ to +70℃

Applications and Model Selection Guide

The compact size and reliable performance of the AR3 joystick make it highly applicable to a variety of industrial scenarios. It is predominantly utilized in construction machinery panels, agricultural equipment control interfaces, and specialized vehicle armrest boxes. Its lightweight design (approximately 45g) and precise 4N operating force make it highly suitable for multi-joystick configurations where operators need to manage multiple functions simultaneously.

When selecting the appropriate AR3 model for your specific project requirements, users can customize their configuration based on three primary factors:

• Output Signal: Multiple types of output signals are available to match the specific control unit of your machinery, ensuring accurate data transmission and equipment response.

• Color Identification: To assist operators in distinguishing between different functions on a complex control panel, various color identification options are provided.

• Output Mode: Depending on the electrical architecture of the application, users can select the output mode that best aligns with their system requirements.

Operating stably in extreme environments ranging from -35℃ to +70℃, this fingertip joystick is a versatile and durable choice for global equipment manufacturers seeking reliable remote control solutions.
