electric joystick for pavers and electro-hydraulic control

Product Description

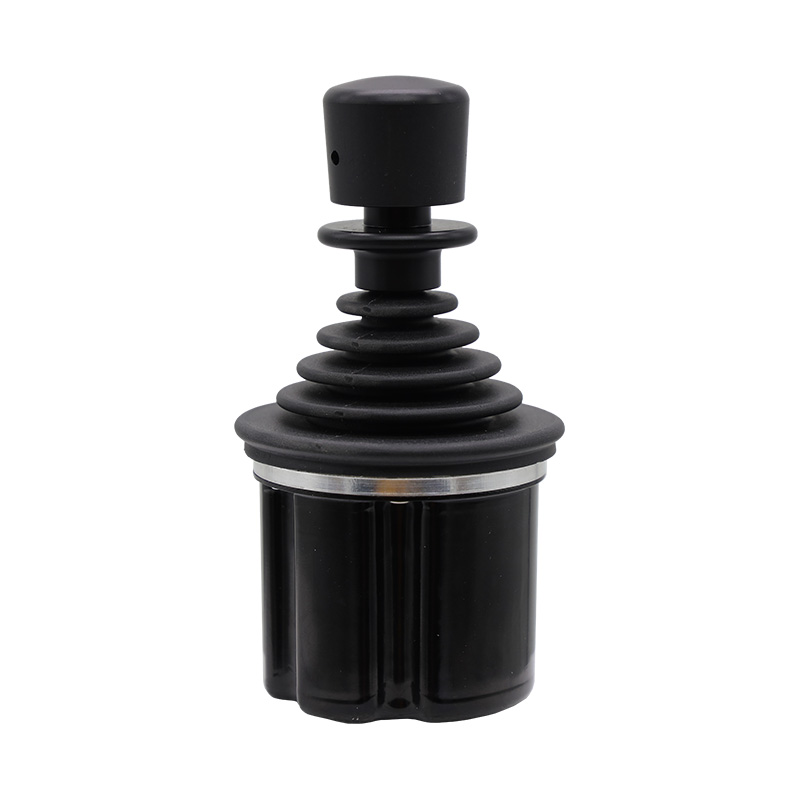

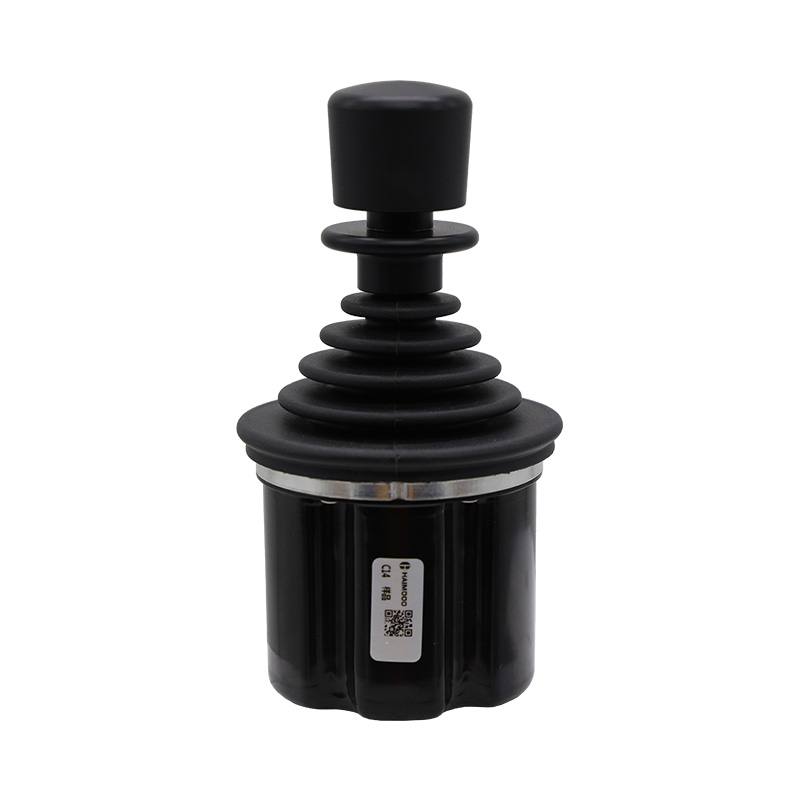

The C14 series single-axis operating handle is meticulously engineered for demanding industrial control environments. Designed as a highly reliable electric joystick, it is specifically tailored to meet the rigorous demands of heavy machinery, including pavers and advanced electro-hydraulic control systems. By adopting a specialized friction positioning method, this joystick ensures exceptionally stable and precise operation. This friction mechanism allows the handle to maintain its position without requiring continuous manual pressure from the operator, significantly reducing fatigue during long working hours and ensuring consistent control over complex industrial equipment. The integration of advanced sensing technology and robust mechanical design makes it an ideal choice for procurement teams seeking durable control solutions that reduce maintenance frequency and improve overall machinery performance.

Key Features and Advantages

• Non-Contact Hall Effect Technology: Utilizes advanced non-contact Hall sensor technology to detect movement. This eliminates physical wear between sensor components, significantly enhancing the reliability and long-term accuracy of the control signal compared to traditional contact-based potentiometers.

• Extended Operational Lifespan: Engineered for heavy-duty industrial usage, the handle boasts a remarkable mechanical lifespan of over 5 million operational cycles. This exceptional durability ensures long-lasting performance even in continuous, high-intensity working conditions, effectively lowering the total cost of ownership.

• Robust Environmental Protection: Featuring an electronic protection level of IP65, the joystick is highly resistant to dust ingress and low-pressure water jets. This reliable sealing makes it perfectly suited for outdoor construction sites, agricultural fields, and harsh industrial environments where exposure to the elements is common.

• Enhanced Safety Mechanisms: The handle can be equipped with a neutral mechanical lock, which includes a dedicated lift lock switch. This critical safety feature prevents accidental actuation caused by vibrations or unintended contact, ensuring that heavy machinery only operates when intentionally engaged by the user.

• Redundant Output Options: To meet stringent safety requirements, the joystick supports redundant output configurations. This provides a crucial fail-safe mechanism for critical electro-hydraulic control applications where signal reliability is paramount for operational safety.

• Convenient Installation: Designed with user-friendly mechanical and electrical interfaces, the C14 series facilitates quick integration into existing control panels. Through multiple selection options, it seamlessly meets different project needs, reducing assembly time for equipment manufacturers.

Technical Specifications

• Operating Angle: ±26.5°

• Operating Force: 8-20N

• Power Supply Compatibility: Compatible with 5Vdc or a wide range of 9-32Vdc power supplies, easily accommodating various vehicle and industrial electrical systems.

• Electronic Protection Level: IP65

• Mechanical Lifespan: > 5 million times

• Output Signal: Multiple output signal types available to match specific controller and system requirements.

Typical Applications

The C14 series electric joystick is highly versatile and applicable to a wide range of demanding fields. It serves as a primary control component for pavers, where precise speed and directional control are necessary for laying materials smoothly and accurately. Furthermore, it excels in electro-hydraulic control systems, providing the accurate proportional signals required to actuate hydraulic valves in construction, mining, and agricultural machinery. Additionally, its robust design and multiple selection options make it highly adaptable for various industrial automation setups, meeting the diverse operational needs of modern manufacturing, material handling equipment, and specialized industrial vehicles.
