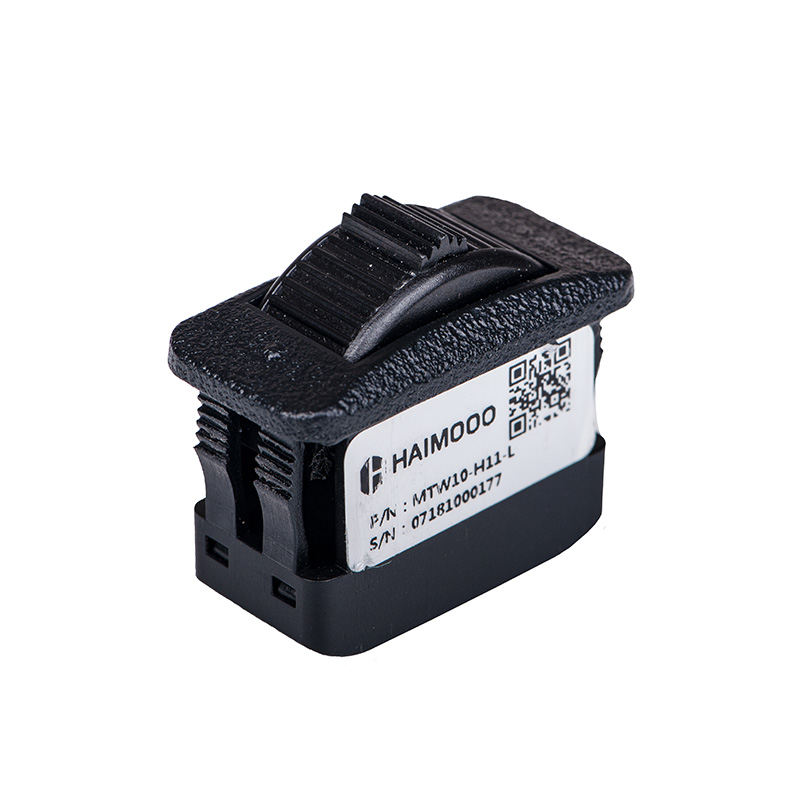

The MTW10 series thumb dial is a compact thumb-shaped operating device. It operates in a single-axis forward and backward direction, features an automatic spring reset function, adopts non-contact Hall technology, is highly reliable and has a long service life. The protection level of the electronic part reaches IP68S. Its shaking Angle is approximately ±30°, the operating force is 2-3N, the weight is about 30g, and it can work in an environment ranging from -30℃ to +70℃. Suitable for multi-functional handle grips and control panels. In terms of electrical parameters, the power supply voltage is available in 5.0±0.5Vdc or 9 to 32Vdc. Users can select the type based on the output signal and the outgoing line method. There are multiple types of output signals. By default, it is a direct outgoing line. The wire specifications are AF200 and AWG28#, and the outgoing line length is 300mm.
The MTW10 series thumb dial is a compact thumb-shaped operating device. It operates in a single-axis forward and backward direction, features an automatic spring reset function, adopts non-contact Hall technology, is highly reliable and has a long service life. The protection level of the electronic part reaches IP68S. Its shaking Angle is approximately ±30°, the operating force is 2-3N, the weight is about 30g, and it can work in an environment ranging from -30℃ to +70℃. Suitable for multi-functional handle grips and control panels. In terms of electrical parameters, the power supply voltage is available in 5.0±0.5Vdc or 9 to 32Vdc. Users can select the type based on the output signal and the outgoing line method. There are multiple types of output signals. By default, it is a direct outgoing line. The wire specifications are AF200 and AWG28#, and the outgoing line length is 300mm.
